High Pressure Filter Press Introduction

High Pressure Filter Press

Filter press is suitable for almost all types of slurry, such as: ceramics industry, stone industry, glass industry, mining &minerals industry, coal washing, sand washing, pull &paper industry, food industry, chemical & pharmacy industry, electroplating industry, textile & dyeing, leather industry, municipal slurry etc.

Principle

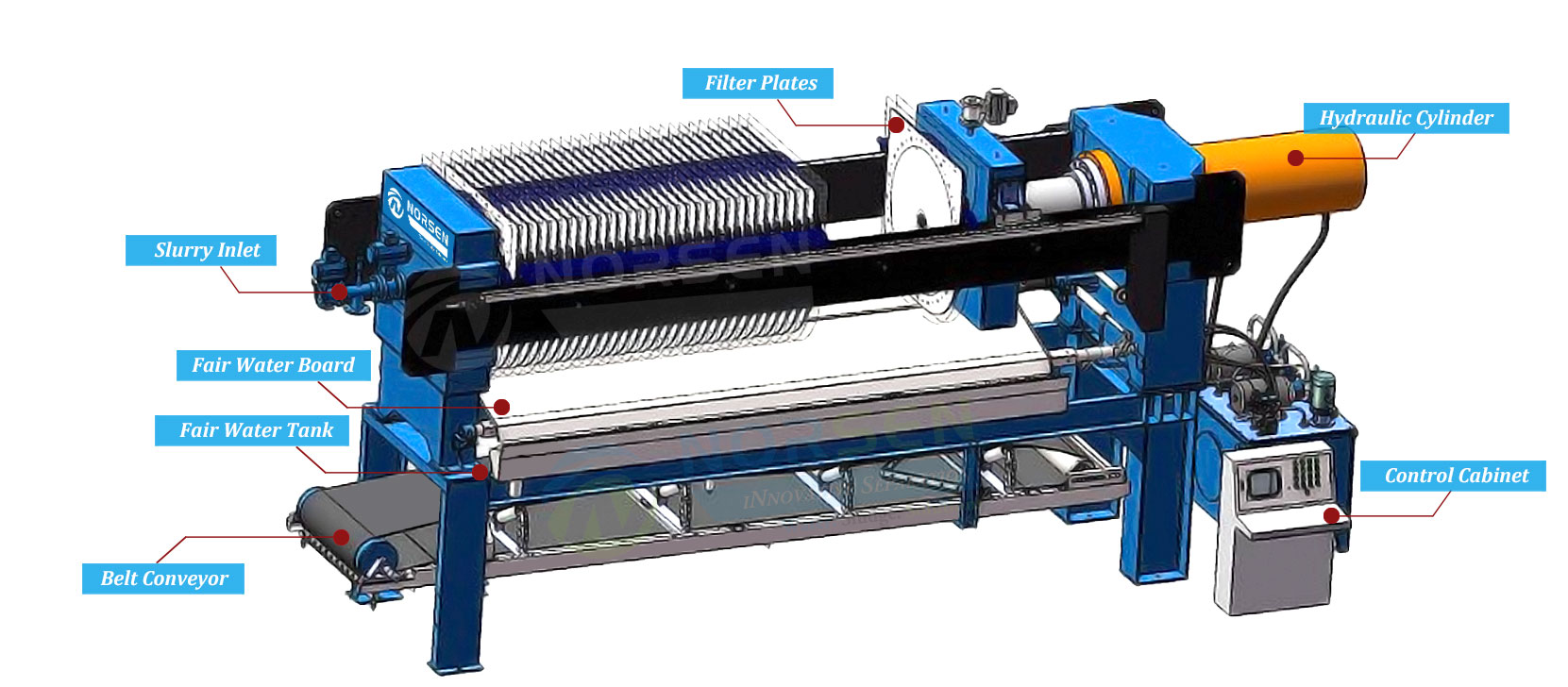

High Pressure Filter Press Principle

Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

Advantages

■ This type use automatic pulling plate, center monitoring, high degree of automation and reducing the operator.

■ Automatic collection and drop leaf, separating residue and wastewater in depth. It can improve the quality of products and beautify the environment.

■ Filter plate is made of imported high polymer PE to press molding by special patented technology, so that sure to service for longer time.

■ On the basic of property, proportion and project. It improves 10% solid content than general material.

■ With the high standard of production technique and technology and insure every product be in advantage level.

■ The automatic control of electrohydraulic integration and relay control and so on various of configuration. The operation panel is simple.

■ This machine is high in working pressure , large in volume of production and low in energy consumption. It’s a perfect solid-liquid separation equipment.

Parameters

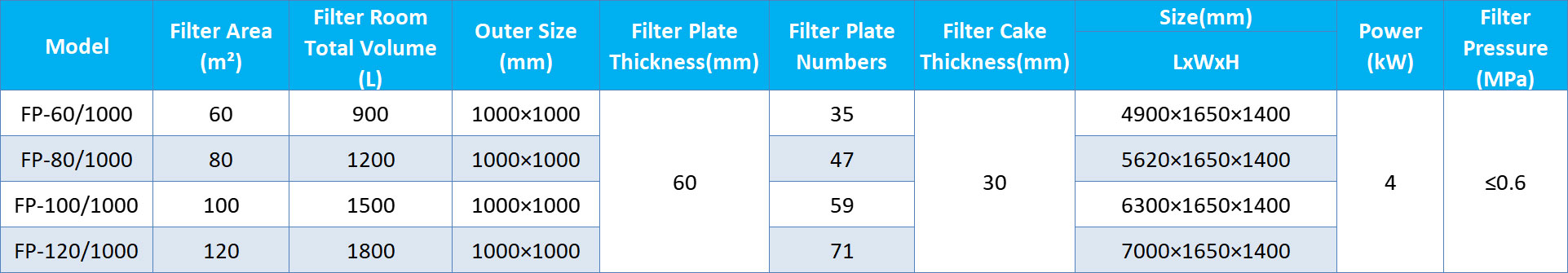

High Pressure Filter Press Parameters

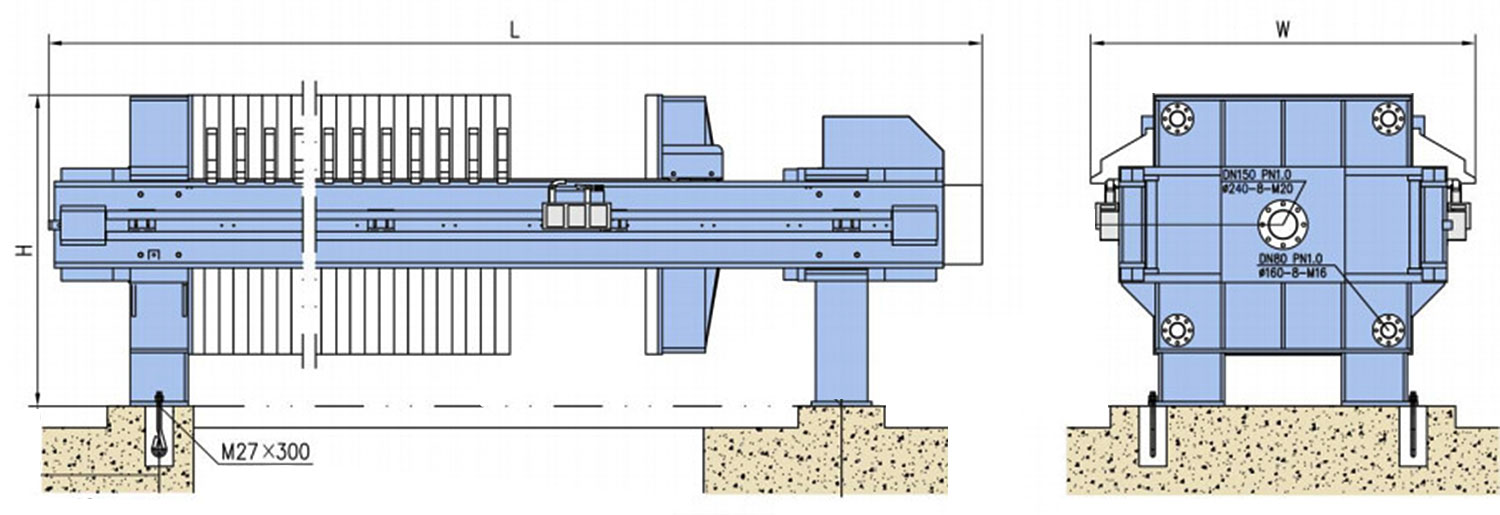

High Pressure Filter Press Drawing
